^B3 · Code 39 Bar Code

Generates a Code 39 barcode (alphanumeric; start/stop asterisk is added automatically).

Parameters

• ^B3o,e,h,f,g - o: Orientation (N/R/I/B)
• ^B3o,e,h,f,g - e: Calculate mod-43 check digit (Y/N, default N)
• ^B3o,e,h,f,g - h: Bar code height in dots
• ^B3o,e,h,f,g - f: Print interpretation line (Y/N)
• ^B3o,e,h,f,g - g: Print interpretation line above code (Y/N)

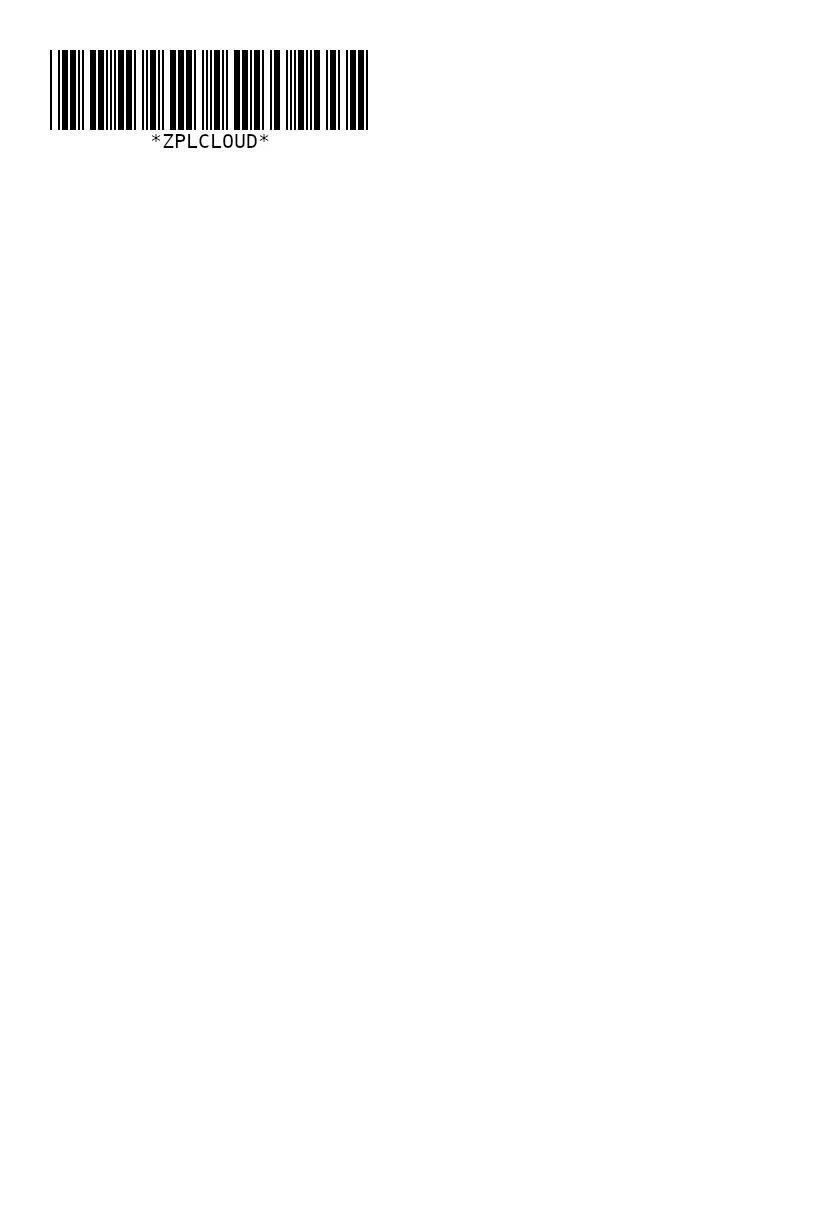

Example

^XA
^FO50,50^BY2^B3N,N,80,Y,N^FDZPLCLOUD^FS
^XZ

Tip

Code 39 allows A–Z, 0–9, space and - . $ / + %. Lowercase and other ASCII characters only work via Full ASCII character pairs (e.g. +A for a), which the scanner decodes in Full ASCII mode.
