ZPL commands
^BE · EAN-13 Bar Code
Generates an EAN-13 barcode 13 digits; standard for retail items .
Generates an EAN-13 barcode (13 digits; standard for retail items).
Parameters
^BEo,h,f,g- o: Orientation (N/R/I/B)^BEo,h,f,g- h: Bar code height in dots^BEo,h,f,g- f: Print interpretation line (Y/N)^BEo,h,f,g- g: Print interpretation line above code (Y/N)

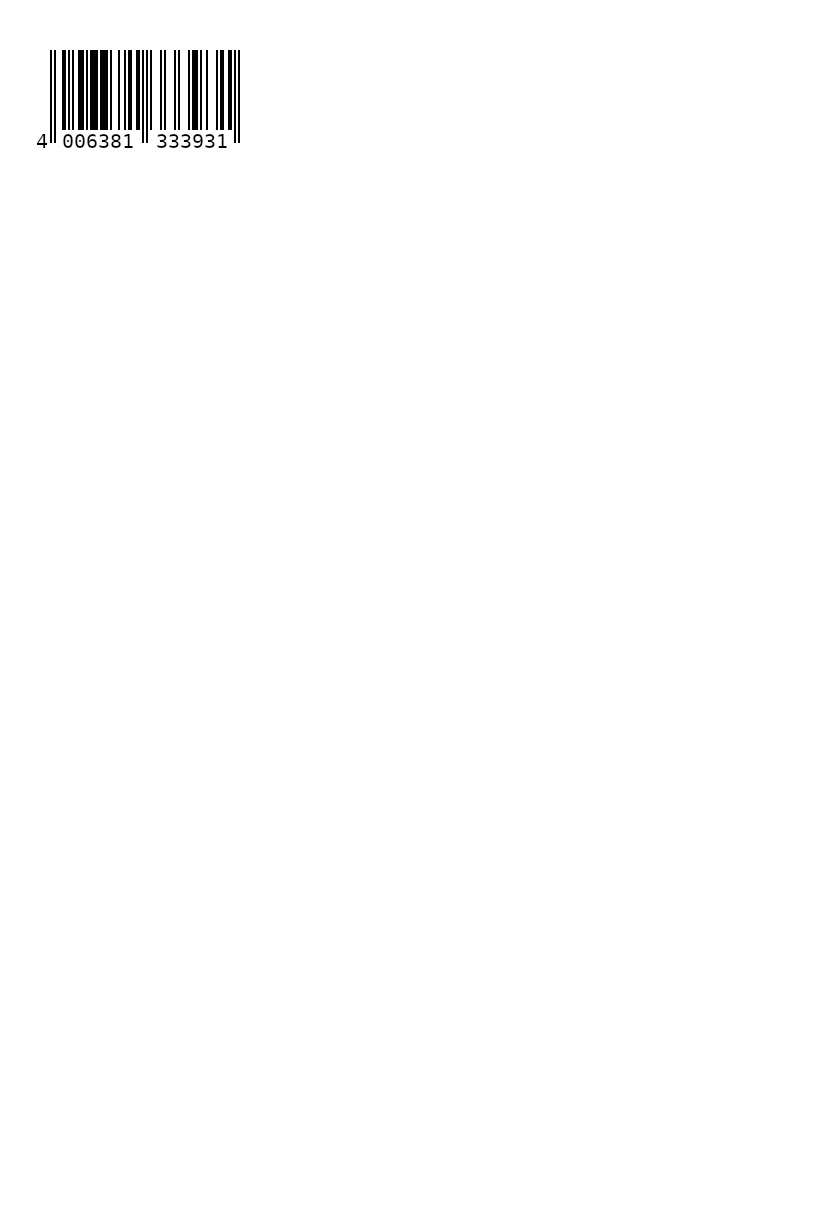

Example
^XA
^FO50,50^BY2^BEN,80,Y,N^FD4006381333931^FS
^XZ
Tip
Provide 12 or 13 digits - the check digit is calculated by the printer.
